Swift Trainer 1x
Cadets, Trainers & Scouts/Trainer Fittings & Features

TRAINER FITTINGS
& FEATURES

Stretchers · Shoe Sizes · Colours · Seats · Riggers · Quick Release

Carbon & PVC sandwich stretchers, four upper-deck colours, lightweight carbon seat tops, and heavy-duty aluminium wing riggers, engineered for the lower-ability and recreational rower.

01 · Stretchers

Carbon & PVC
foam sandwich.

Club A and Club B boats are supplied with lightweight carbon and PVC-foam sandwich stretchers. Choose between Swift shoes or flexfoot, both are standard on every Trainer.

Swift ShoesFlexfoot
Club AStandardStandard
Club BStandardStandard

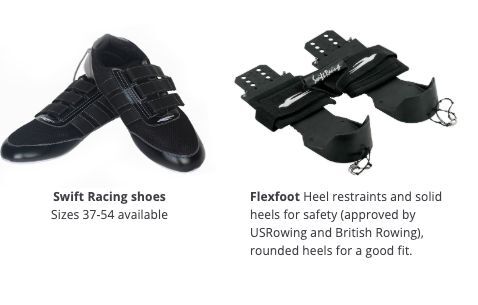

Swift Racing shoes (sizes 37-54) and Flexfoot heel restraints
Swift Racing Shoes: Sizes 37-54 available. Flexfoot: Heel restraints and solid heels for safety, rounded heels for a good fit. Approved by USRowing and British Rowing.
02 · Shoe Sizes

Order in EU.
Convert here.

The order form requires European shoe sizes. Use the live chart below, Euro 37 through 52. This chart scrolls horizontally on smaller screens.

Euro 37383940414243444546474849505152
GB4.2555.756.57.2588.759.510.251111.7512.513.251414.7515.5
US4.755.56.2577.758.59.251010.7511.512.251313.7514.515.2516
JPN22.7523.524.252525.7526.527.252828.7529.530.253131.7532.533.2534
03 · Colour Options

Off-white hull,
4 upper colours.

All hulls are off-white. Choose from 4 upper-deck colours (decks & cockpit): red, aqua blue, yellow, or light grey.

Colours shown are approximate. If colour matters, check using the RAL number.

Off-white hull · Red upper
Off-white hull · Aqua blue upper
Off-white hull · Yellow upper
Off-white hull · Light grey upper
SwatchRAL #NameHullUpper
RAL 9016Off whiteFrom 2023From 2023
RAL 7035Light greyUntil 2023Until 2023
RAL 3020RedNoFrom 2018
RAL 3001RedNoUntil 2018
RAL 5012Aqua blueNoYes
RAL 1018YellowNoYes
  • From 2023: RAL 9016 "Off white" replaces RAL 7035 "Light grey" for hulls.
  • From 2018: RAL 3020 replaces RAL 3001 "red".
  • From 2022: gelcoat as base layer + polyurethane finish (same as Racing Shells). Applies to hulls, upper parts, bow & stern decks and cockpits.
04 · Name on Boat

50 mm Arial.
Ordered with the boat.

50 mm tall, Arial font, in UPPER CASE & lower case. Must be ordered at the same time as the boat.

Ask the distributor about the cost.

SWIFT RACING CANADA
Swift Racing Canada

Both UPPER CASE and lower case can be combined on the same boat. Specify exactly as you'd like it to appear on the order form.

05 · Seat Types

Plastic or carbon:
by grade.

Club B boats are supplied with a moulded plastic seat top (Sea33B). Club A boats are supplied with lightweight carbon seat tops, in single-action or double-action configurations.

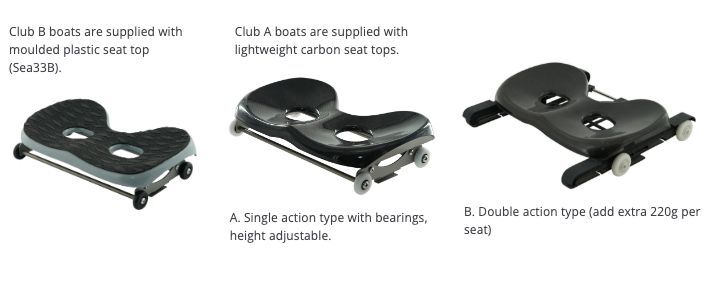

Three Trainer seat options: Sea33B plastic, Single action carbon, Double action carbon
Sea33B: Club B boats are supplied with moulded plastic seat top. A. Single Action Type: Club A carbon seat top with bearings, height adjustable. B. Double Action Type: Club A carbon seat top, adds extra 220 g per seat.
06 · Riggers

Heavy-duty aluminium
stern wing.

Trainer 1x are only available with our heavy-duty aluminium wing riggers, mounted over the foot stretcher and not supplied with backstays. The aerofoil profile is ideal for lower-ability crews and recreational rowing.

Our riggers are made from high-grade aluminium, welded to the optimum design and hard anodised for a long-lasting finish. All are adjustable for span, work height and pitch, and we guarantee the accuracy of our span, work height and pitch.

Tolerance
±3 mm · ±0.3°
Span measured from
Boat centre line, pin in middle of rigger block, oarlock vertical & in middle of pin.
Work height measured from
Curve around the hole in the seat top to the sill of the oarlock.
Work height adjustment Work height total Span adjustment per rigger
by pin washers by 10mm spacers by rigger height by height wedge
Heavy duty ali wing riggers ±18 mm ±10 mm - - +28, −18 mm ±40 mm
  • Wing riggers have +10 mm extra work height adjustment with Swift's "10 mm spacers", Prod# Rig33 (1 set supplied as standard).
  • For heavy duty ali wing riggers, lateral pitch can be easily adjusted with our pin wedges, Rig10A (1° wedges supplied as standard).
07 · Quick Release

Precision-made.
Reliable.

Our wing-rigger quick release system is precision-made, easy to use and reliable.

Heads-up: QR parts are the same height as our standard 10 mm spacer. When QR parts are used, adjustability of work height is reduced by 10 mm. Contact your distributor for installation details.

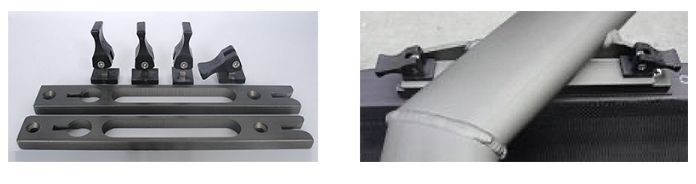

Quick release parts and quick release system mounted on a wing rigger
Left: Precision-made QR parts. Right: QR system mounted on a wing rigger, ready to use.
