FITTINGS
& FEATURES

Stretchers · Seats · Rudders · Fins · Storage · Bow Protection

Every coastal-specific fitting Swift offers, from shoe options and stern-mounted retractable rudders, to bow protective wraps and BowTuff tape. Built for the beach, the surf, and the long touring day.

01 · Stretchers & Shoes

Carbon & PVC
foam sandwich.

Coastal boats are supplied with lightweight carbon and PVC-foam sandwich stretchers. Choose from three shoe systems: Active Shoes, Swift Shoes, or Flexfoot.

	Active Shoes	Swift Shoes	Flexfoot
Elite Carbon	Standard	Standard	Standard
Elite Plus	Upgrade	Standard	Standard

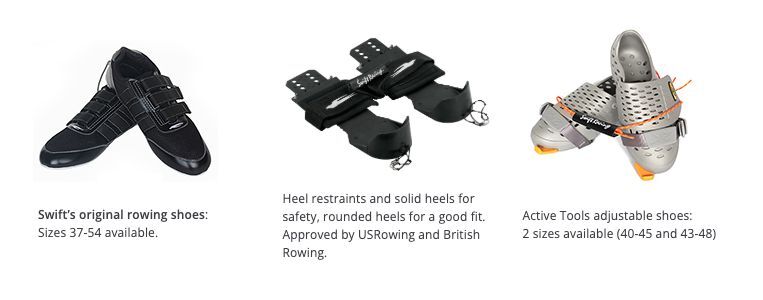

Swift's original rowing shoes, Heel restraints / Flexfoot, Active Tools adjustable shoes — **Swift's Original Rowing Shoes**: Sizes 37–54 available. **Flexfoot, Heel Restraints**: solid heels for safety, rounded heels for a good fit. Approved by USRowing and British Rowing. **Active Tools Adjustable Shoes**: 2 sizes available (40–45 and 43–48).

02 · Shoe Sizes

Order in EU.
Convert here.

The order form requires European shoe sizes. Use the live chart below to convert from GB / US / JPN, covers Euro 37 through 54. Scroll horizontally on smaller screens.

Euro	37	38	39	40	41	42	43	44	45	46	47	48	49	50	51	52	53	54
GB	4.25	5	5.75	6.5	7.25	8	8.75	9.5	10.25	11	11.75	12.5	13.25	14	14.75	15.5	16.25	17
US	4.75	5.5	6.25	7	7.75	8.5	9.25	10	10.75	11.5	12.25	13	13.75	14.5	15.25	16	16.75	17.5
JPN	22.75	23.5	24.25	25	25.75	26.5	27.25	28	28.75	29.5	30.25	31	31.75	32.5	33.25	34	34.75	35.5

03 · Seat Type

Lightweight
carbon seat tops.

All boats are supplied with lightweight carbon seat tops. Same carbon top across the range, choose single-action or double-action depending on use.

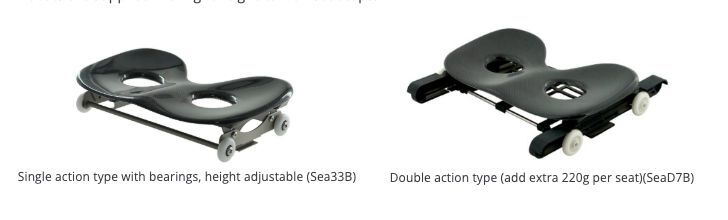

Single action seat (Sea33B) and Double action seat (SeaD7B) — **A. Single Action Type**: with bearings, height adjustable (Sea33B). Sealed ball-bearing wheels, supplied as standard. **B. Double Action Type**: adds an extra **220 g per seat** (SeaD7B).

04 · Rudders

Sensitive on the quad.
Retractable on singles.

The 4x+ has a fin/rudder system, just in front of the cox. There are two rudder options across the coastal range.

01 · Standard Rudder · CO402x+

Our standard rudder for the CO402x+ is sensitive and very effective, part of what makes Swift quads turn so well, and important for manoeuvring in very big waves.

02 · Optional Stern-Mounted · 1x & 2x

The 1x and 2x can be supplied with an optional shoe-controlled, stern-mounted rudder, which can be pulled up out of the water.

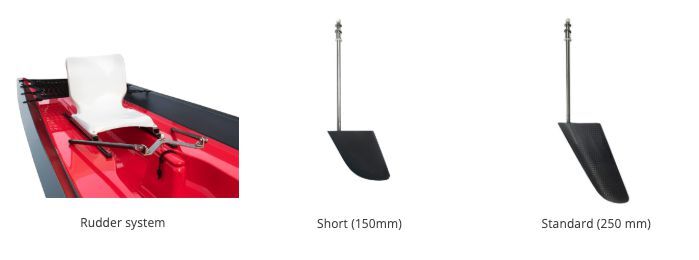

Rudder system on coastal boat, plus Short 150mm and Standard 250mm rudder blades — **Rudder System**: installed in front of the cox on a CO402x+. **Short, 150 mm** rudder blade. **Standard, 250 mm** rudder blade.

Optional shoe-controlled stern-mounted retractable rudder for 1x and 2x — **Optional Stern-Mounted Rudder**: shoe-controlled, retractable. Available on 1x and 2x.

05 · Fins

Three blades.
Two box positions.

For 1x and 2x, three fin options: small for calm conditions, medium for rougher conditions, and a low-profile fin for beach sprint races and shallow water. Fins swap between types with a 2.5 mm Allen key.

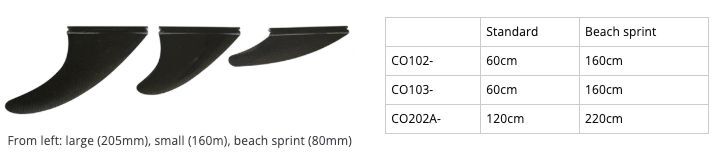

Three fin sizes: large 205mm, small 160mm, beach sprint 80mm — **From left:** Large (205 mm) · Small (160 mm) · Beach sprint (80 mm).

Fin Box Positions

There is also a choice of fin box position: Standard and "Beach Sprint". The beach sprint position is 1 m closer to the bow than the standard position, so it's easier to turn, good for short slalom-style beach sprint races. It's also less likely to scrape against the beach at the start. Or, optionally, have 2 fin boxes.

	Standard	Beach Sprint
CO102-	60 cm	160 cm
CO103-	60 cm	160 cm
CO202A-	120 cm	220 cm

06 · Wave Break & Bow Deck Hatch

Sliding wave break.
Hatch you choose.

The 402+ mould was updated in February 2022 to include a sliding wave break. There's a choice of hatch near the wave break: our standard 180 mm hatch, or our oval hatch, which is better for storing more stuff "on tour".

Coastal boat side view showing sliding wave break and standard fin — **Sliding Wave Break**: on the updated 402+ mould, with the standard fin in place.

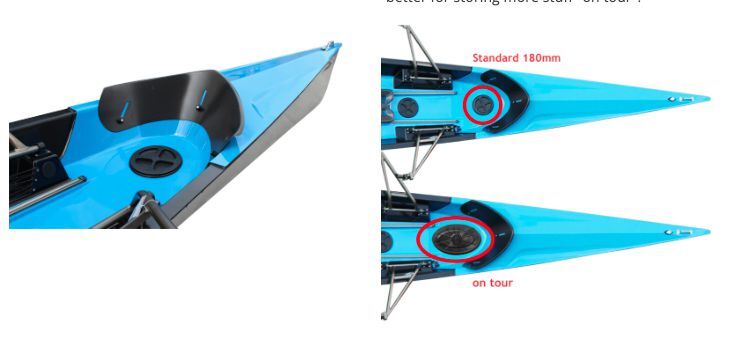

Bow deck hatch comparison: Standard 180mm (top) and oval 'on tour' hatch (bottom) — **Standard 180 mm Hatch**: circular, fitted near the wave break. **Oval "On Tour" Hatch**: better for storing more gear on long touring days.

07 · Stern Cover (Optional)

Keep the water
out of the stern.

Our optional stern cover reduces the amount of water coming into the stern of the boat. Useful when you're stationary at the start of a race in mid-sized waves, or when wave length is shorter than boat length and the stern dips under. Also useful for long-distance touring.

Ask the distributor about extra cost.

Optional black stern cover fitted to a coastal boat — **Stern Cover**: fits over the open stern deck, securely strapped.

08 · Waterproof Storage Bag, Touring Option

Dry storage
between riggers.

Waterproof storage bags for 2x and 4x+, attached between rigger mounts with Velcro and clips. Suitable for touring, keeps your kit dry on long days out.

Ask the distributor about extra cost.

Swift waterproof storage bag installed between rigger mounts on a coastal boat — **Waterproof Storage Bag**: Velcro & clip attachment between the riggers, on a 2x or 4x+.

09 · Cox Feet Blocks · CO4x+

Second feet position
for the cox.

Cox feet blocks offer a second position for the cox's feet on the CO4x+. Attach to the boat with 3M Dual Lock.

Ask the distributor about extra cost.

Cox feet blocks installed in the CO4x+ cockpit, attached with 3M Dual Lock — **Cox Feet Blocks**: installed in the CO4x+ cockpit, secured with 3M Dual Lock.

10 · Bow Protective Wrap

3 layers
where it matters.

From Feb 27th, 2024: protective, clear wraps for the bow (hull) to help protect boats from damage on the beach.

Ask the distributor about extra cost.

01 · Two Side Pieces

Two large pieces, one on either side of the boat, from the deck joint down to the keel, overlapping each other along the keel.

02 · Keel Reinforcement

An extra piece: 10 cm wide, 100 cm long: attached along the keel from the top of the bow, so there are 3 layers in the most important area.

03 · Material

The material is TPU 6.5 mil type: clear, durable, beach-tested.

Clear TPU bow protective wrap installed on a white coastal hull — **Bow Protective Wrap**: clear TPU film installed on the hull, almost invisible.

11 · BowTuff Protective Tape

5 cm × 60 cm
where it counts.

BowTuff provides protection against wear and tear, and damage from small stones and shells on the keel in the bow area, especially when finishing on beaches. 5 cm wide and 60 cm long.

Bow of a coastal boat with red triangle indicators showing where BowTuff tape is applied — **BowTuff Application Area**: keel of the bow, the part most exposed to beach landings.

12 · Next Step

Ready to spec
your coastal boat?

Boat Grades & Construction

Hull shapes, three grades (Carbon Pro, Elite Carbon, Elite Plus) and the boat-weight chart.

View Grades →

Request a Quote

Shoes, fins, rudder, hatch, wraps, give us your spec and we'll match the right configuration.

Start Request →

RAL #	Name	Hull	Upper
RAL 9016	Off white	from 2023	from 2023
RAL 7035	Light grey	until 2023	until 2023
RAL 3020	Red	No	from 2018
RAL 3001	Red	No	until 2018
RAL 5012	Aqua blue	No	Yes
RAL 1018	Yellow	No	Yes

Handle	Color Code	Grip Diameter
Small	Red	32 mm
Medium	Orange	35 mm
Medium	Purple	37 mm

	Club Performance (CP)	Recreational (Rec)
Total weight: Long (per piece)	1.42 ± 0.2 kg	1.47 ± 0.2 kg
Total weight: Medium (per piece)	1.36 ± 0.2 kg	1.41 ± 0.2 kg
Total weight: Short (per piece)	1.34 ± 0.2 kg	1.39 ± 0.2 kg
Max variation per pair (kg)	20 g	30 g
Shaft stiffness: Long	35 mm	40 mm
Shaft stiffness: Medium	28 mm	34 mm
Shaft stiffness: Short	24 mm	28 mm
Max variation per pair (cm)	2 mm	2 mm

	A2 blade	A3 blade
Long: Length (cm)	268-280	273-285
Medium: Length (cm)	256-268	-
Short: Length (cm)	244-256	-

Hull	Coremat core with kevlar skins.
Saxboards	Closed cell PVC foam core with kevlar skins and carbon reinforcing.
Canvas Decks	Coremat core with kevlar skins.
Seat Deck	Closed cell PVC foam core with kevlar skins.

Hull	Coremat core with fibreglass skins.
Saxboards	Closed cell PVC foam core with fibreglass skins and carbon reinforcing.
Canvas Decks	Coremat core with fibreglass skins.
Seat Deck	Closed cell PVC foam core with fibreglass skins.
