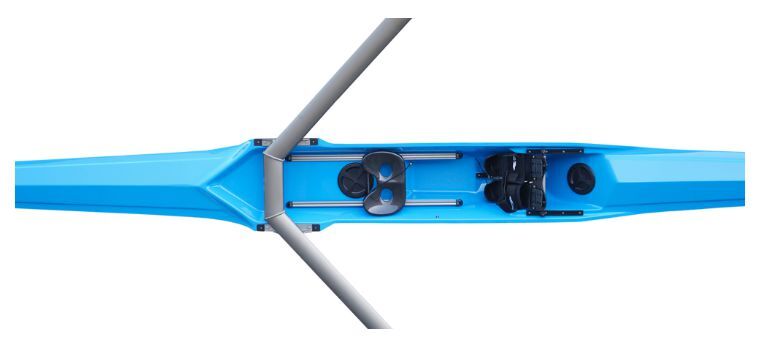

Swift Cadet boat with reverse wing rigger top-down view
Cadets, Trainers & Scouts/Riggers & Rigging

RIGGERS
& RIGGING

Reverse Wing · Three Sizes · Quick Release

Cadet (CA) boats ship with reverse wing riggers, just like Olympic Champions. High-grade aluminium, hard anodised, three rigging sizes for the Cadet Mini and Cadet 1x.

01 · Reverse Wing Riggers

Reverse wing.
Olympic-grade.

Cadet (CA) boats are supplied with reverse wing riggers, just like Olympic Champions! We use high-grade aluminium that is hard anodised for the best finish.

Our riggers are welded to the optimum design, all adjustable for span, work height and pitch: and we guarantee the accuracy of every one.

REVERSE WING

Aluminium Reverse Wing Riggers

  • Scull and sweep riggers using aerofoil profiles.
  • C-bracket to hold the pin.
  • Mounted behind the rower.
02 · Adjustment Range

Span. Work height.
Pitch.

All measurements in millimeters or degrees. ±3 mm, ±0.3° is the margin of error we work to.

  • From the boat's centre line, when the pin is in the MIDDLE position of the rigger block.
  • When the oarlock is vertically in the MIDDLE position of the pin.
  • From the curve around the hole in the seat top to the sill of the oarlock.
Rigger Work Height Adjustment Work Height
Adjustment Total
Span Adjustment
per Rigger
by pin washers by 10 mm spacers by rigger height by height wedge
Ali Reverse Wing scull±18 mm+10 mm--+28, −18 mm±38 mm
WING · 10 MM SPACERS

Wing riggers have +10 mm extra work-height adjustment with Swift's "10 mm spacers": Prod# Rig33. 1 set supplied as standard.

CADET · NO CUSTOM RIGGERS

±3 cm adjustment for span, ±2.5 cm adjustment for work height. Cadet oars have 12 cm of adjustment. Custom riggers are not offered.

CADET 1x ≠ CADET MINI 1x

The same riggers cannot be used on both the Cadet 1x and the Cadet Mini 1x. Make sure to order the correct rigger size for your hull.

03 · Rigging Options

Three Mini sizes.
Two Cadet sizes.

Pick the rigger size by rower height, recommended pairing with Cadet oar length and outboard. See oar pages for full oar details.

Cadet Mini Rigger Options

Size Work Height (cm) Span (cm) Lateral Pitch Recommended Rower Height Recommended Oar Length (cm) Outboard (cm)
Small13147140-155 cm (4'7"–5'1")Short Cadet244-256166-181
Medium14.5151150-165 cm (4'11"–5'5")Medium Cadet256-268176-191
Large16155160-175 cm (5'3"–5'9")Long Cadet268-280184-199

Cadet Rigger Options

Size Work Height (cm) Span (cm) Lateral Pitch Recommended Rower Height Recommended Oar Length (cm) Outboard (cm)
Medium14.5151150-165 cm (4'11"–5'5")Medium Cadet256-268176-191
Large16155160-175 cm (5'3"–5'9")Long Cadet268-280184-199
04 · Quick Release, Wing Riggers

Off in seconds.
Ten-mil compromise.

Swift's wing-rigger quick release system is precision made, easy to use and reliable.

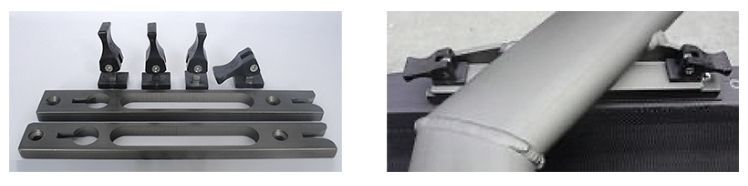

Swift Quick Release rigger parts and clamp on rigger pipe
QR Parts on Rail: precision-machined components alongside an oarlock for scale. QR Clamp on Rigger Pipe: fast on, fast off; no tools required.
!

Important

QR parts are the same height as our standard 10 mm spacer. When QR parts are used, adjustability of work height is reduced by 10 mm.

For more information, please see the QR Installation guide (PDF).
